Socket Screws

G-FAST SOCKET FASTENER SERIES

The G-Fast Socket Fastener Series provides OEMs, manufacturers, and engineering teams with a complete range of precision socket-drive fastening solutions. This guide summarizes the core product families, compares available materials, and provides a detailed reference for set screw tip geometries.

1. Socket Fastener Product Family Overview

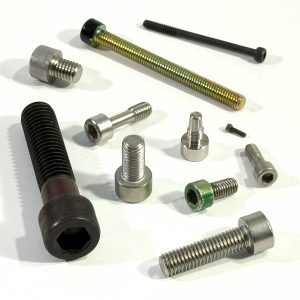

Socket Head Cap Screws (SHCS)

High-strength cylindrical head design for maximum torque, ideal for machinery, automation, robotics, and heavy-duty assemblies.

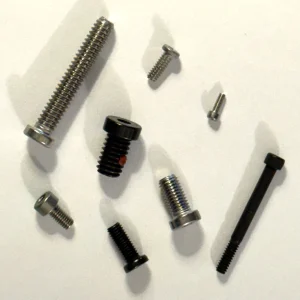

Low Head Socket Cap Screws

Reduced-head-height socket cap screws designed for space-constrained assemblies where standard socket head cap screws are too tall.

Button Head Socket Cap Screws

Low-profile, rounded head for clean appearance and safety in housings, guards, electronics, and consumer-facing components.

Flat Head Socket Cap Screws

Countersunk, flush-mount fasteners used in applications requiring smooth surfaces, precision fit, and streamlined design.

Socket Shoulder Bolts (Stripper Bolts)

Precision fasteners with a ground shoulder used for alignment, spacing, and controlled sliding or rotational motion.

Socket Set Screws

Headless, fully threaded fasteners used for locking, positioning, and indexing shafts, collars, gears, and instrumentation components.

2. Materials Comparison Table

Material	Strength	Corrosion Resistance	Magnetic?	Best For
Alloy Steel	Very High	Low–Moderate	Yes	High-load assemblies, machinery, robotics
300 Series Stainless	Moderate	High	No	Food, medical, marine, corrosion environments
410 Hardened Stainless	High	Moderate	Yes	High-strength stainless applications
Brass	Low–Moderate	Moderate	No	Non-marring contact, electronics, sensors
Titanium	High	High	No	Aerospace, medical, lightweight structures
Monel	High	Very High	No	Marine and chemical processing
Hastelloy	High	Extreme	No	High-temperature and corrosive environments

3. Set Screw Tip Geometry Guide

Cup Point

General-purpose holding with strong bite.

Cone Point

Penetrates surface for permanent positioning.

Flat Point

Non-marring, ideal for frequent adjustment.

Half Dog Point

Indexing into slots or grooves.

Full Dog Point

Precise axial alignment in mating holes.

Oval Point

Controlled friction without deformation.

Nylon-Tipped

Non-marring, vibration-damping.

Brass-Tipped

Soft contact for delicate or polished surfaces.
