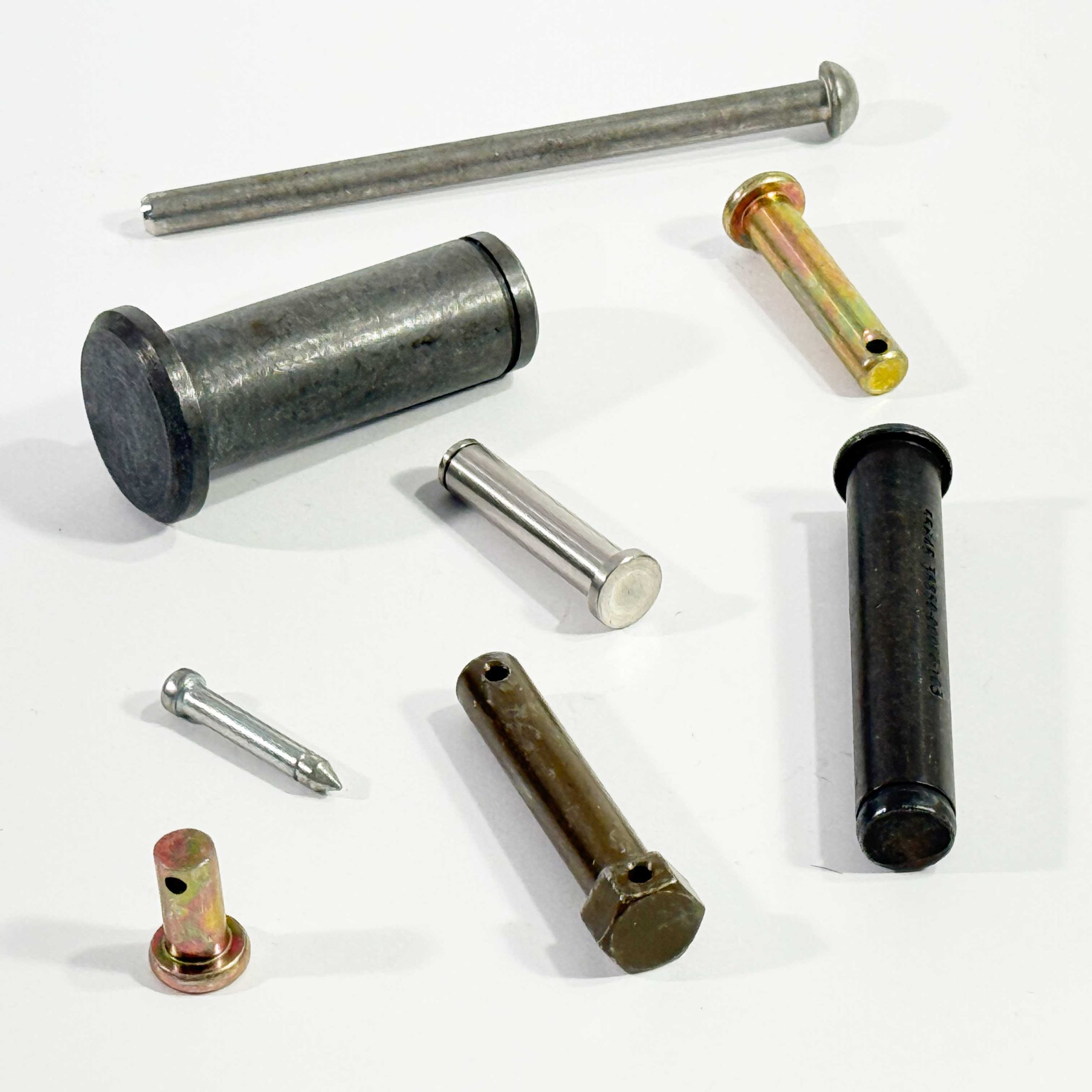

At G-Fast, clevis pins are manufactured strictly to customer prints or verified specifications. Production methods are selected based on geometry, material, and volume-from CNC machining for complex or small-batch parts to cold heading for high-volume production.
Functional Use
Clevis Pins - Cylindrical pins used in pivoting assemblies where rotation is required and axial retention is achieved using secondary hardware such as cotter pins or clips.
- Pivot and hinge connections
- Linkage assemblies
- Mechanical joints requiring movement
- Retained pin assemblies with removable hardware
Typical applications include actuator linkages, hydraulic cylinder connections, conveyor systems, and industrial machinery.
Manufacturing Capabilities
- Cold Heading - High-volume production with strong grain flow
- CNC Machining - Complex geometries and smaller quantities
Features include cross-drilled holes, grooves, headed or headless forms.
Secondary operations include heat treating, plating, threading, and grooving.
Materials & Finishes
Carbon steel, alloy steel, stainless steel, 17-4 PH, brass, aluminum
Finishes include zinc plating, black oxide, passivation, and specialty coatings.
Standards & Compliance
ASME B18.8.1, DIN/ISO standards, MS/NAS specifications, and customer drawings.
Available: material certs, inspection reports, process certs.
Automation & Equipment Applications
Used in systems requiring movement and serviceability:
- Conveyor linkages
- Robotic joints
- Hydraulic actuators
- Equipment pivot assemblies
- Made to Print - Not Catalog Substitution
G-Fast manufactures clevis pins to customer drawings or approved samples.
We review for manufacturability only. All changes require customer approval.
Request a Quote
Include drawing, material, quantity, certifications, and processing requirements.
