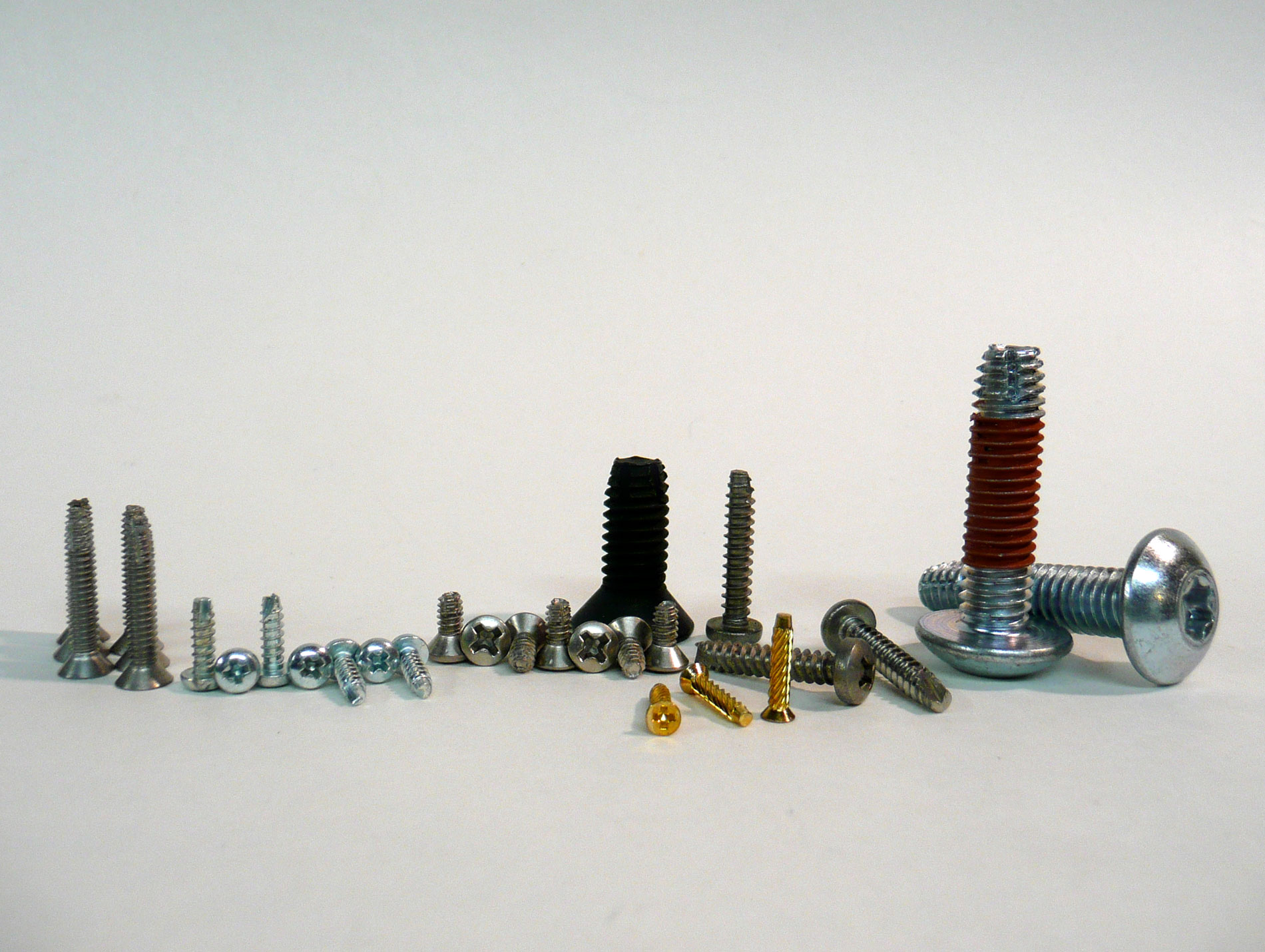

Sheet metal screws are self-tapping fasteners used to join thin metal sections and metal-to-nonmetal materials.
G-Fast supplies sheet metal screws produced to customer specifications across a range of head styles, materials, and thread configurations. These fasteners are designed to form mating threads during installation, eliminating secondary tapping operations and supporting efficient assembly.
Applications include sheet metal fabrication, HVAC systems, enclosures, automotive components, and light structural assemblies.
Configurations and Head Styles
Sheet metal screws are specified based on installation method, material thickness, and required bearing surface.
Pan Head – General-purpose design with a flat bearing surface for consistent clamping.
Hex Washer Head – Integrated flange increases bearing area and supports higher clamp loads.
Flat Head (Countersunk) – Designed to sit flush with the surface.
Truss Head – Wide head reduces risk of pull-through in thin materials.
Oval Head – Countersunk with a raised finish where appearance matters.
Thread Forming and Tapping Screw Types
The term “sheet metal screw” is commonly used to describe a range of tapping screws.
In traditional usage, this refers primarily to Type A, Type AB, and Type B designs intended for thin sheet materials.
Other tapping screw types including thread cutting designs (Types D, F, G, T) and specialized geometries are used in thicker materials, castings, and engineered assemblies.
Modern designs such as tri-lobular and plastics screws extend this category further and are specified based on material and performance requirements.
SELF-TAPPING VS SELF-DRILLING
Sheet metal screws are typically self-tapping, forming threads in a pre-drilled hole.
Self-drilling screws incorporate a drill point and eliminate the need for a pilot hole.
Selection depends on material thickness, hole accuracy, and installation method.
Sizes and Availability
G-Fast supplies sheet metal screws in both imperial and metric sizes.
Metric sizes typically range from approximately 3.5 mm to 6.3 mm.
Imperial sizes typically range from No. 6 through 1/4 inch.
Lengths typically range from 1/2 inch to 2 inches and beyond per specification.
Applications of Sheet Metal Screws
Sheet metal screws are used across a wide range of assemblies where thin materials must be securely fastened.
Typical applications include HVAC systems, automotive panels, light-gauge construction, electrical enclosures, appliance manufacturing, and general metal fabrication.
Use in Wood Application
Sheet metal screws are sometimes used in wood applications, particularly in field installations where availability and convenience drive selection.
However, they are not a direct substitute for wood screws.
Traditional wood screws include a partially threaded shank beneath the head, allowing materials to be drawn tightly together during installation. Sheet metal screws are typically fully threaded, which limits that clamping action.
Type A and Type AB screws can penetrate wood and may be used in light-duty applications.
Type B screws, with a blunt tapered point, are intended for pre-drilled holes and are not suited for wood.
Where joint clamping and pull-up performance are critical, a true wood screw design is generally preferred.
Fasteneering® Insight
Thread-forming fasteners interact directly with the base material. Performance depends on material thickness, hole size, thread geometry, and installation method.
G-Fast reviews supplied specifications for manufacturability, material compatibility, and cost efficiency while working strictly to customer-defined requirements.
How G-Fast Supports Sheet Metal Screw Programs
G-Fast supplies sheet metal screws produced to customer specifications and recognized industry standards.
For applications requiring specific materials, finishes, or performance requirements, we review supplied drawings or specifications for manufacturability, feasibility, and cost efficiency prior to production.
Where appropriate, we may suggest alternative materials, thread forms, or production methods. Any recommended changes are reviewed and approved by the customer’s engineering team and incorporated into updated documentation before manufacturing begins.
